1.GENERAL
DMC AC Contactor is suitable for using in the circuits up to the rated voltage 660V.AC 50Hz or 60Hz,rated current up to 85A,for making breaking frequently starting&machine-interlocking device etc,it becomes the delay contactor,mechanical interlocking contactor. star-delta starter,with the thermal relay,it is combined into the electromagnetic starters.The contactor is according to IEC60947-4-1.

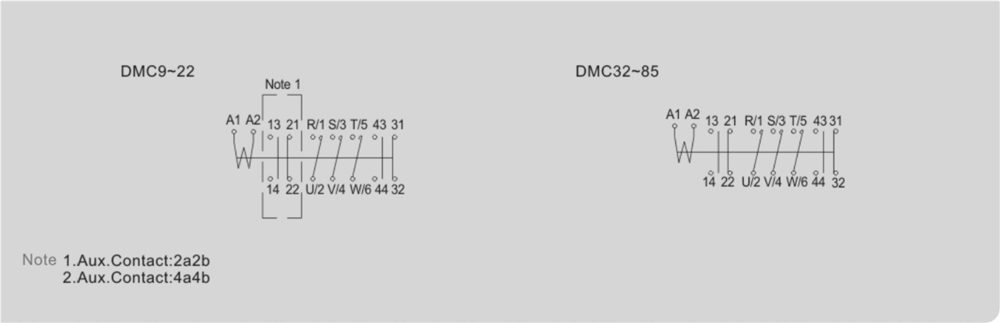

2.TERMINAL MARKS

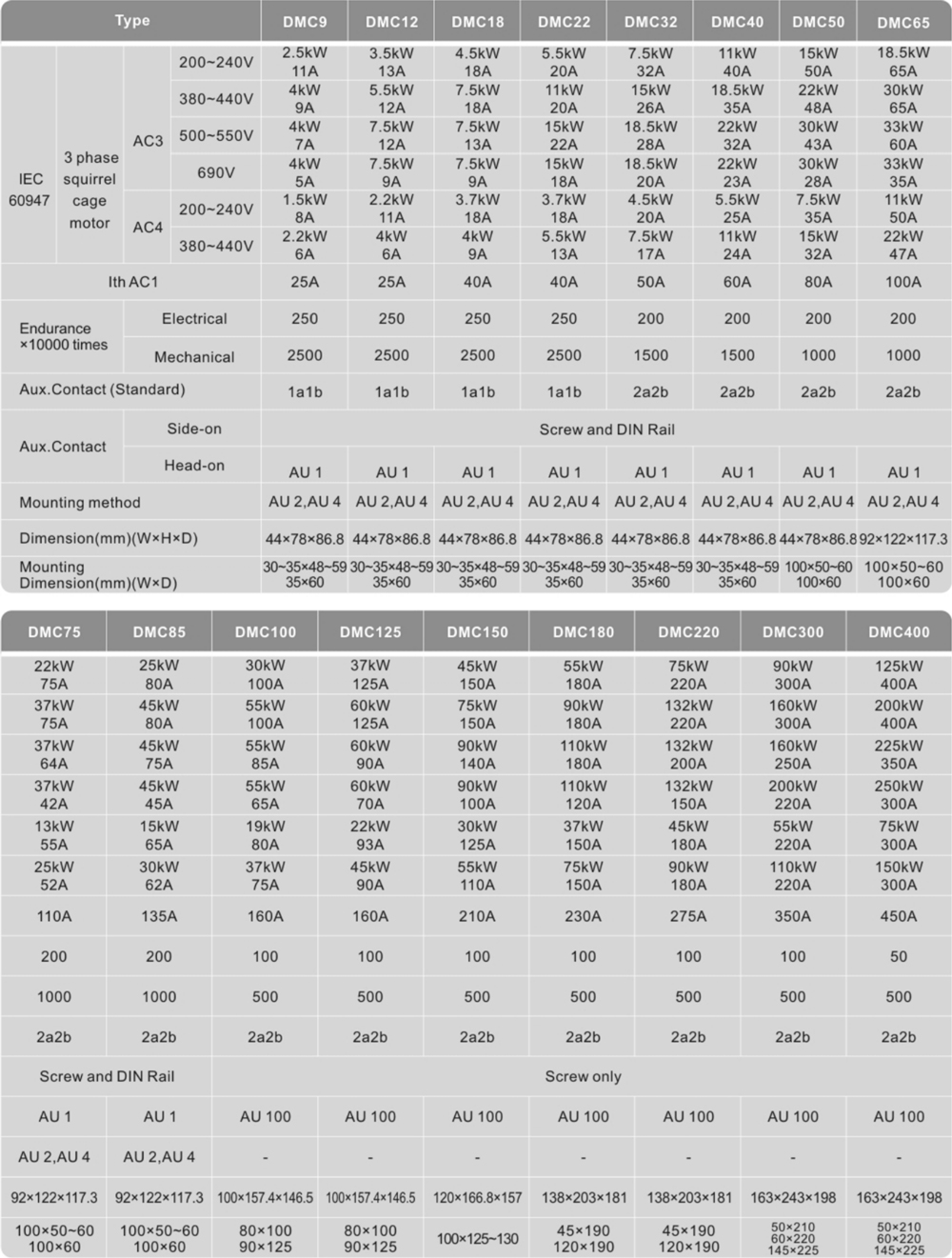

3.SPECIFICATIONS

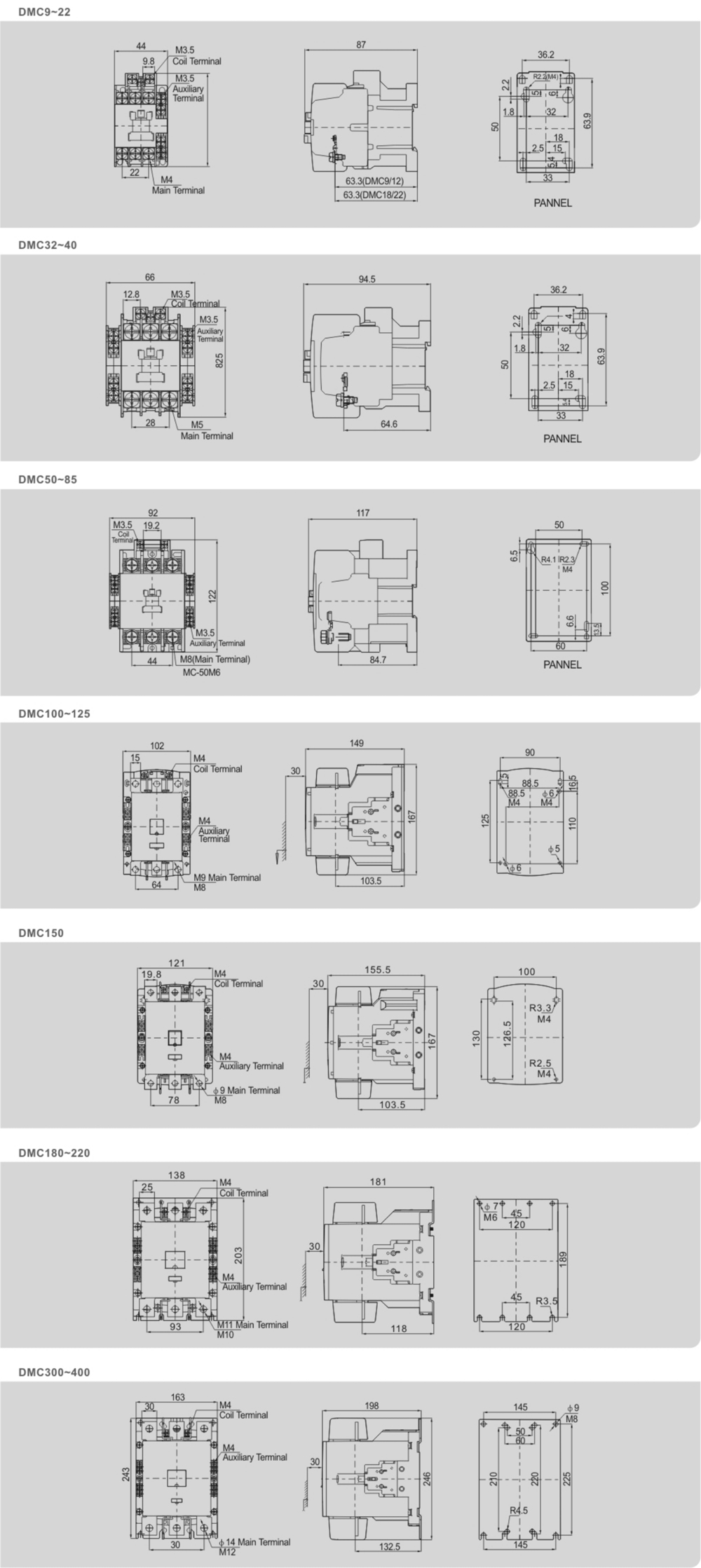

4.EXTERNAL DIMENSIONS AND CONTACT CONFIGURATIONS(STANDARD AC MAGNETIC CONTACTORS)
